RVG-ST

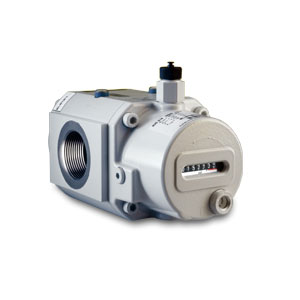

Media: Natural gas, town gas, inert gases Industry: Gas supply, stove manufacturers, chemical industry. Tasks: Measurement, control and automatic regulation. RVG: Flange connection G16 – G400 RVG-ST: Standard thread connection G10 – G25 Elster-Instromet RVG and RVG-ST rotary gas meters are volumemeasuring devices for gaseous media and operate according to the positive displacement principle. They… Read more

Contact Us

Description:

Applications

Media: Natural gas, town gas, inert gases
Industry: Gas supply, stove manufacturers, chemical industry.
Tasks: Measurement, control and automatic regulation.

Brief information

RVG: Flange connection G16 – G400
RVG-ST: Standard thread connection G10 – G25

Operating principle

Elster-Instromet RVG and RVG-ST rotary gas meters are volumemeasuring devices for gaseous media and operate according to the positive displacement principle.

They register the gas volume under operating conditions. In order to correct the measured volume to standard conditions, electronic volume correctors with various characteristics are available.

The actual measuring cell consists of two 8 shaped impellers, which build together with the housing 4 chambers per revolution, which are periodically fi lled and emptied.

The number of revolutions is proportional to the passed volume. The rotation is transferred to a mechanical index, which indicates this volume.

General

Rotary meters are characterized by high measuring range and compact dimensions.

Due to their measuring principle they do not require any straight inlet or outlet pipe section. Rotary meters have to be lubricated with oil. For easy access and control of the appropriate oil level the oil chambers on the front and the backside are connected to allow maintenance to be done from the front side only.

The double direction index allows adapting the meter to any flow direction.

The RVG is available with the latest technology of the Absolute-ENCODER S1D, which enables the most reliable readout of a mechanical index.

The RVG-ST is the smallest meter line from G10 to G25. It has a threaded connection as standard. Optionally it is also available as fl ange version.

The index of the RVG-ST is located in the gas area, while the RVG uses index variants outside the gas area in atmospheric air driven by a magnetic coupler.

Features
  • Meter sizes: G10 – G400
  • For flow rates 0.6 m³/h to 650 m³/h
  • Nominal widths DN 25 – DN 150
  • Pressure ratings PN 10/16 and ANSI 150
  • Cast iron housing (GGG 40) or aluminium housing
  • High-temperature resistance up to 4 bar for GGG 40
  • Optional: double direction index S1D for universal installation and flow direction
Availability
  • Asia-Pacific
