Dynamic Load Management

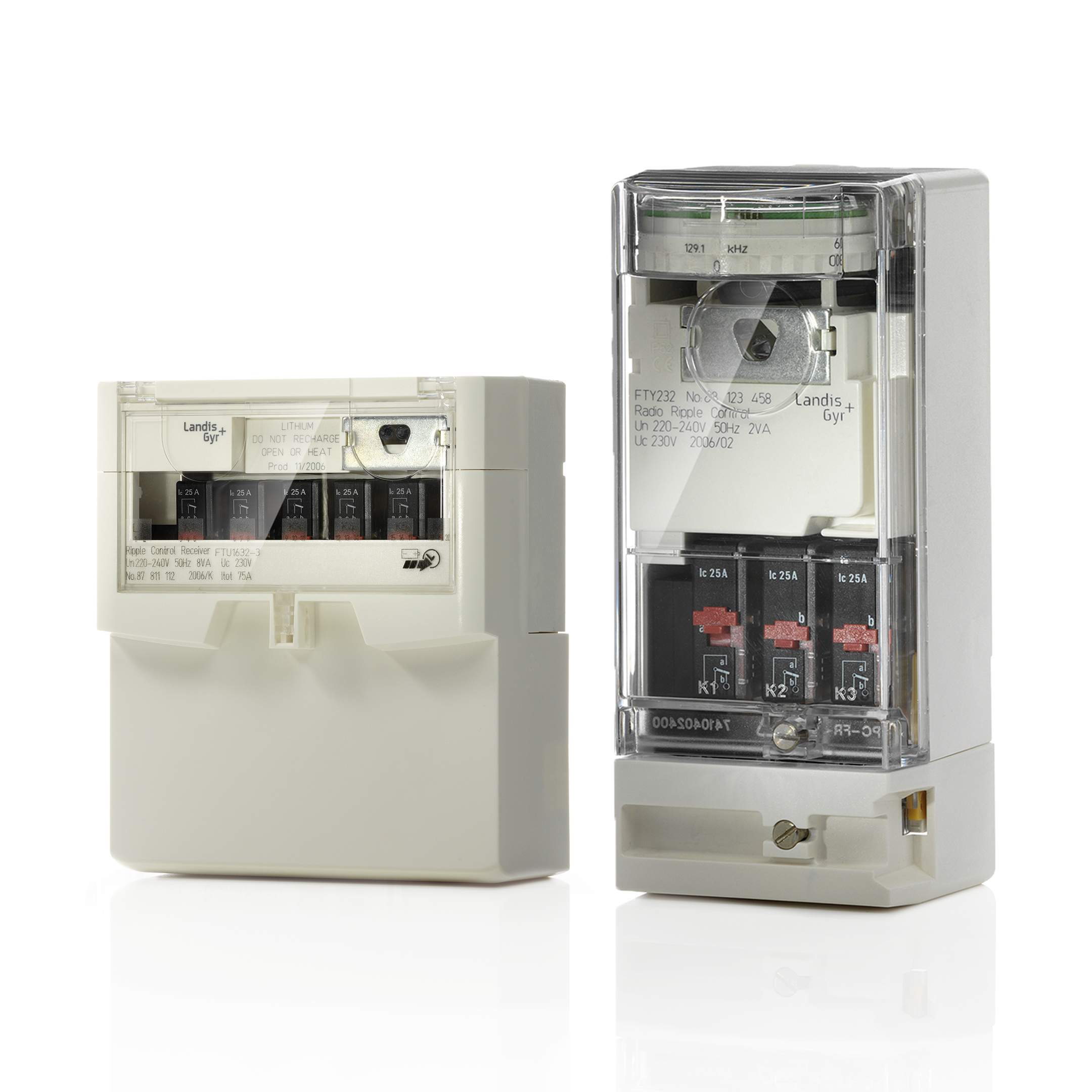

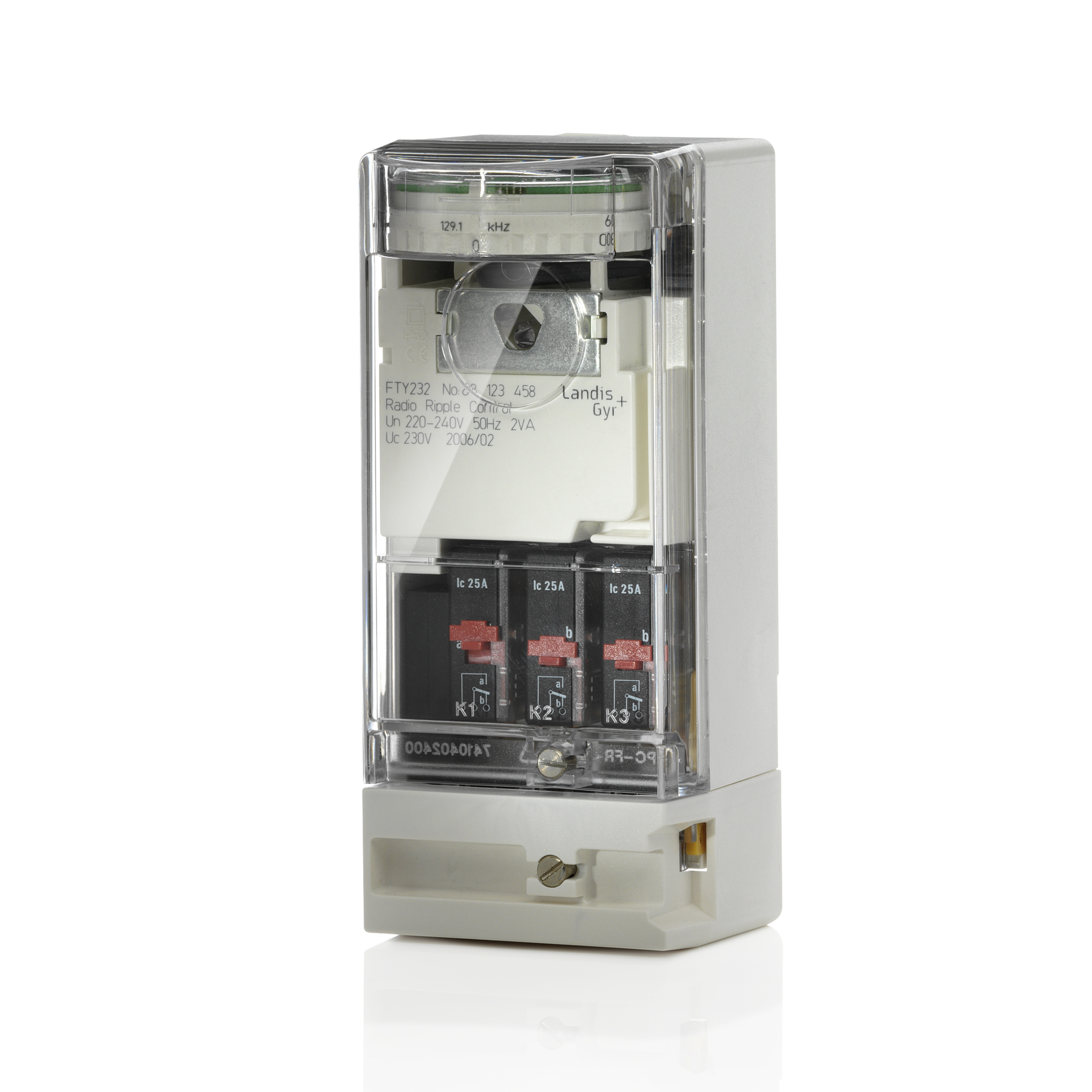

Landis+Gyr RCR Ripple Control Receivers

Ripple Control is a mature and cost-effective technology for tariff and load control. Landis+Gyr Ripple Control Receivers RCR cover a wide range of applications from simple remote switching of the relays to individually parameterizable timers. Read more

Contact Us

Description:

Smart combination of ripple control and time switch

Landis+Gyr RCR ripple control receiver supports a lean and cost-effective functional concept for basic receiver requirements. Outstanding features are the seven-day time switch for easing transmitter load and the learning function for autonomous switching operation in case of transmitter outage.

The combination of ripple control and seven-day time switch functions in one unit ensures a reliable operation of the ripple control installation. Depending on the device type up to six change-over switches (25 A) or 40 A relays can be plugged-in and individually parameterized via interpreter programs.

Features
  • Seven-day time switch (time and weekday synchronization by means of ripple control transmission)
  • Learning function: Memorizing switching operations and automatic repetition
  • LED for operational status display
  • Interpreter programs for free allocation of addresses and commands to relays
  • 16 interpreter programs including 4 with timing functions
  • Relay status confirmation for fraud prevention
  • Event log
  • Automatic correction of pulse distortion
  • Signal level storage of last message
  • Transmitter outage detection (failsafe)
  • Programmable response to power outages and restoration of power
  • Test function with test button
  • Plug-in EEPROM for program memory
Variations
  • RCR131 with up to 3 plug-in 25 A changeover switches, compact housing and 3 different sizes of terminal covers
  • RCR161 with up to 6 plug-in 25 A changeover switches or 40 A relays and 2 mounting options: panel mounting or installation on meter terminal cover
Availability
  • Europe, the Middle East and Africa
