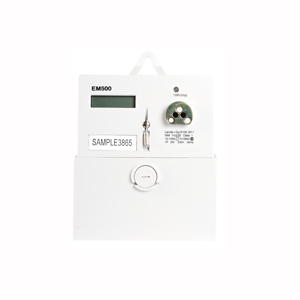

Landis+Gyr EM500

The EM500 meter provides the utility with an economical metering solution that excels in residential metering applications. Read more

Contact Us


Compact in size, designed and built with robust components, the EM500 meter provides years of trouble-free service. This meter has been specifically designed and tested to meet Australian Standards and to withstand Australia’s severe environmental conditions.


  • Bottom two M3 mounting holes
  • Current 10 – 100A
  • Voltage 240V
  • Same foot print as the EM1000
  • Configuration 1p2w
  • Rated accuracy Class 1.0
  • Frequency 50Hz
  • Starting current 40mA
  • IP rating IP53
  • Lightning withstand 10kV
  • Dimensions (mm) 126W x 51D x 152H
  • Operating temperature (ambient) 10°C – +60°C
  • Calibrated in an ISO 17025 NATA accredited facility
  • NMI 14/2/22 Pattern approved
  • kWh import energy registers
  • Six energy digits with leading zeros
  • Standards
    • AS 62052.11-2005
    • AS 62053.21-2005
    • NMI Pattern approved
    • ISO9001
    • ISO17025
