Commercial and Industrial Meters

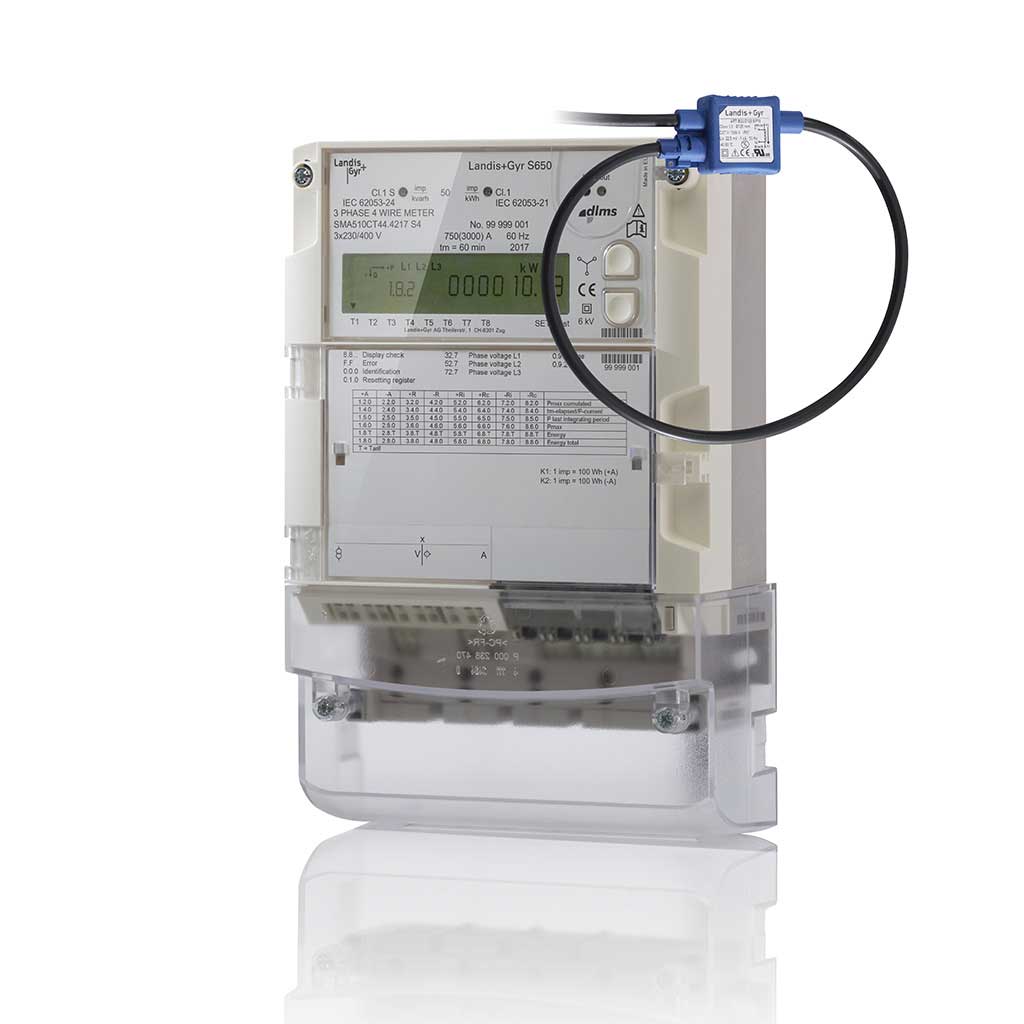

Landis+Gyr S650 with Rogowski Sensors

The S650 SMA510AT/CT Smart Grid Terminal is specially designed to improve network visibility in a cost-efficient and easy way. Read more

Contact Us

Description:

Combination of smart grid and sensors designed for low-cost, fast and safe installation.

The S650 SMA510AT/CT Smart Grid Terminal is especially designed to improve network visibility in a cost-efficient and easy way at existing installations such as:

  • Medium/low voltage transformer stations
  • Distributed energy renewables
  • Low voltage switchboards.

This market leading solution has been developed based on the proven industrial meter E650 and now incorporates 3 Rogowski sensors suitable for use across a wide current range between 200A and 3000A.

The easy “Click-and-Twist” installation of the Rogowski coils requires less than one hour, without any power interruption, resulting in a safe installation upgrade as well as offering significant time and cost savings.

S650 SMA510AT/CT is compatible with all plug-and-play E65C communication modules.

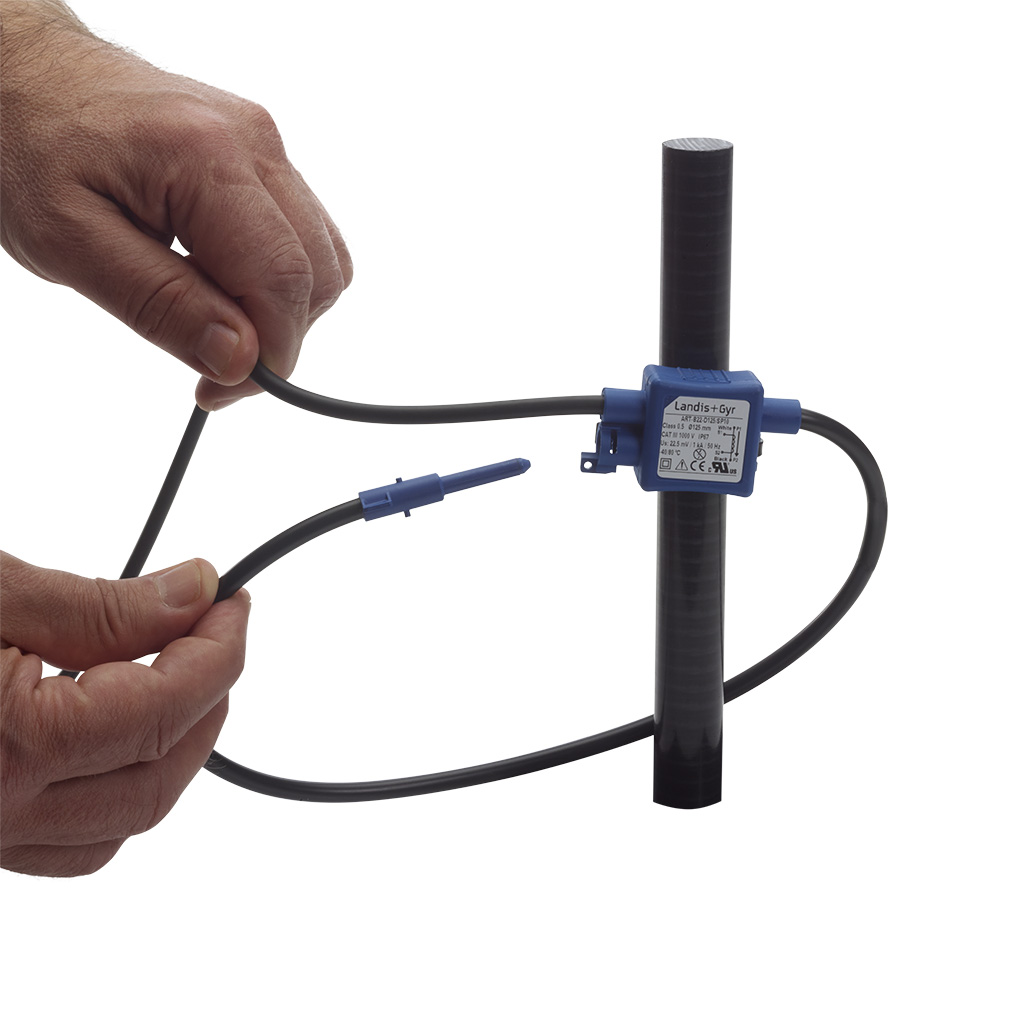

"Easy Quick & Twist”installation of the Rogowski sensors"

Features
  • Powerful energy, voltage and power measurements
  • Operating time measurement
  • Alarming functions incl. customized SMS alarming on event
  • Two load profiles and up to 1000 events recorded
  • Calendar clock
  • Compatible with all E65C communication modules (integrated), suitable for all modern communication requirements
  • Set of 3 Rogowski coils assembled and precalibrated in factory, suitable for up to 3000A
  • Super capacity as option with15s last gasp reserve
Availability
  • Asia-Pacific
  • Europe, the Middle East and Africa
