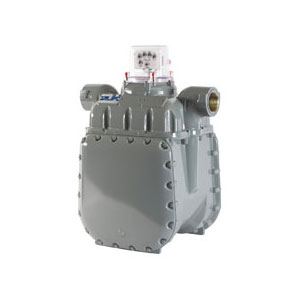

AL1000

Elster American Meter’s aluminumcase meters are designed to provide positive displacement accuracy for industrial or commercial loads. AMR/AMI Compatibility Temperature Compensation available from -30°F to 140°F (-34°C to 60°C) Meets ANSI B109.2 specifications Measurement Canada accredited 1000 SCFH (28.3m3/h) (0.60 specific gravity gas) at ½-inch W.C. differential The AL-1000 meter is ideally suited for commercial… Read more

Contact Us

Description:

Elster American Meter’s aluminumcase meters are designed to provide positive displacement accuracy for industrial or commercial loads.

Advantages

  • AMR/AMI Compatibility
  • Temperature Compensation available from -30°F to 140°F (-34°C to 60°C)
  • Meets ANSI B109.2 specifications
  • Measurement Canada accredited
  • 1000 SCFH (28.3m3/h) (0.60 specific gravity gas) at ½-inch W.C. differential

Applications

The AL-1000 meter is ideally suited for commercial and industrial installations. It is unequaled for accuracy retention and for life cycle maintenance economies.

Options

  • Regular or Temperature Compensated
  • Pointer or odometer index
  • 5ft3, 10ft3, or 0.1m3 drive
  • 30LT, 45LT, 60LT, 100LT, 1-1 1/2” NPT and other connection sizes
  • Pressure compensating indexes
  • Standard or UV protected index covers
  • Remote volume pulsers
  • Connection sets
  • 25 or 100PSIG (170 or 6895 mbar) Maximum Allowable Operating Pressure (MAOP)
Features
  • Die-cast aluminum case
  • Oil-impregnated, self-lubricating bushings
  • Molded, convoluted diaphragms for smooth operation and long life
  • Rigid, reinforced flag rods for positive alignment and sustained accuracy
  • Graphite-filled phenolic valves to minimize wear
  • Long-life, low friction, grommet seals
  • Single coat polyester primer with high solids polyurethane top coat
  • Security seals that indicate tampering
Availability
  • Asia-Pacific
